Advanced Telematics Device

ByteOne is an advanced plug and play telematics device with GNSS, 4G, Bluetooth connectivity. The device is suitable for various of applications and can be customized according to the use case.

Over-the-Air Updates

Over-the-Air Updates

IP Rating Icon

IP 67 Rated Protection

Offline Data Retention

Offline Data Retention

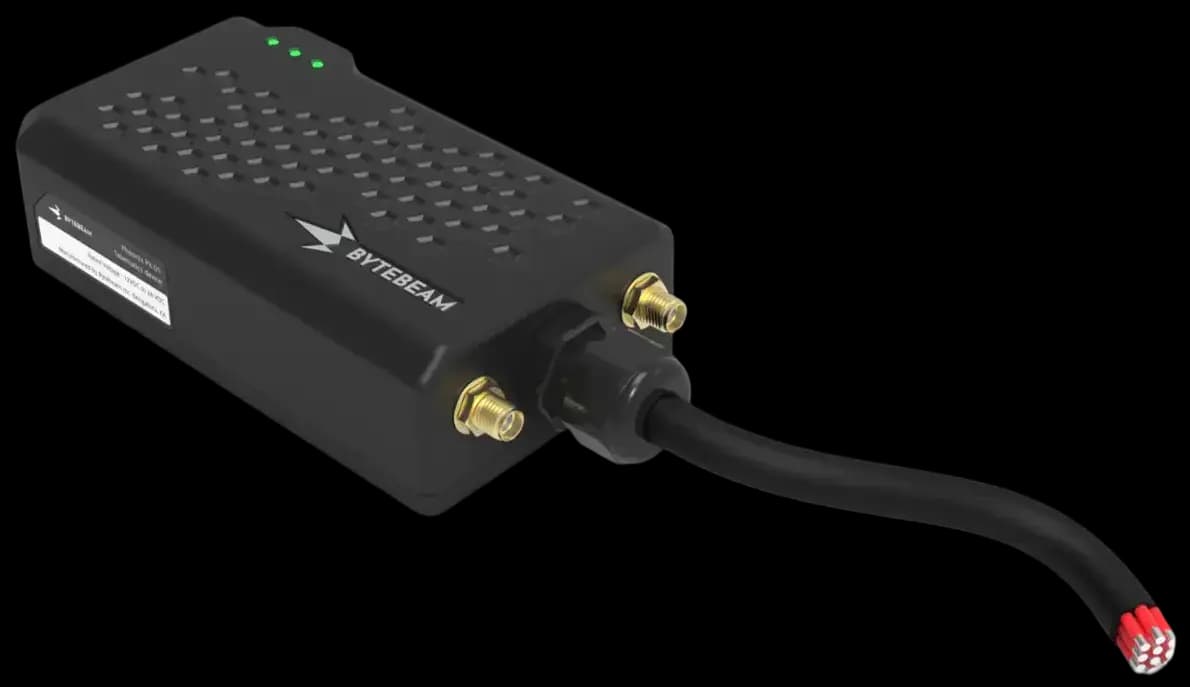

ByteOne Device

Use Cases

Asset Tracking

Fleet Monitoring

Geo-fencing

Battery Monitoring

Charging Infra

Driver Monitoring

Tow/theft Detection

Remote Diagnostics

Would like to know more?

Product Specifications

Module
Name/Module
  • ByteOne/BY-01
Technology
  • GSM/GPRS/GNSS/BLUETOOTH
Cellular
Technology
  • GSM/GPRS, FDD-LTE, TDD-LTE (Cat 1)
Bands
  • FDD-LTE: B1, B2, B3, B4, B5M, B7, B8, B20, B28, B66
  • TDD-LTE: B34, B38, B39, B40, B41
  • GSM/GPRS: 900/1800MHz
Wireless rate
  • GPRS: Max 85.6 Kbit/s (DL) / Max 85.6 Kbit/s (UL)
  • FDD-LTE: Cat 1, Max 10Mbps (DL)/ Max 5Mbps (UL)
  • TDD-LTE: Cat 1, Max 8.96Mbps (DL)/ Max 2Mbps (UL)
SMS
  • PDU, TXT
Data
  • PPP, RNDIS, ECM
Interface
Communication Protocol
  • CAN 2.0 & CAN FD
GNSS, Cellular antenna
  • Internal High Gain, External High Gain
Bluetooth
  • 4.2 + LE
Sensors
  • IMU 6 axis (Accelerometer & Gyroscope)
LED Indication
  • 3 status LED lights (Network, GPS & BT)
SIM
  • Nano SIM, e-SIM (Optional)
Memory
  • SD card expandable upto 32GB
Digital Input Count/voltage range
  • 2/6-90V DC
Analog Input Count/voltage range
  • 2/6-90V DC
Digital Output Count/voltage range
  • 2/as per Digital input in the use case
GNSS
GNSS
  • GPS/BDS/GLONASS
GPS L1 operating frequency
  • 1575.42 ± 1.023 MHz
GLONASS operating frequency
  • 1597.5 ~ 1605.9 MHz
BDS operating frequency
  • 1559.1 ~ 1563.1 MHz
Tracking sensitivity
  • -160 dBm
Acquisition sensitivity
  • -154 dBm
Positioning precision (in air)
  • <3m (CEP50)
Hot start (in air)
  • <1.0s
Cold start (in air)
  • <33s
Update frequency
  • <10Hz
CNRin/CNRout
  • 3dB
GNSS data type
  • NMEA-0183
GNSS antenna type
  • Active antenna
Server
Backend Solution
  • Bytebeam Cloud Services
Operating Conditions
Operating temperature
  • -40°C to +85°C
Bluetooth
Specification
  • 4.2 + LE
Physical
Dimension
  • 138mm x 63mm x 32mm (LxBxH)
Ingress Protection Range
  • IP67
Power
Input Voltage Range
  • 6-90V DC with Reverse Voltage & over voltage protection
Internal Backup Battery
  • 1800 mAh Li-ion battery 3.7V (6.66 Wh)
